Architecture diagrams
Source pin: 5bf351248de6050876fe5b53f91209a970cc5668. These are static abstractions, not exhaustive runtime execution paths. Select an image or SVG link to zoom; editable sources are alongside each view.
System overview and boundaries
System components

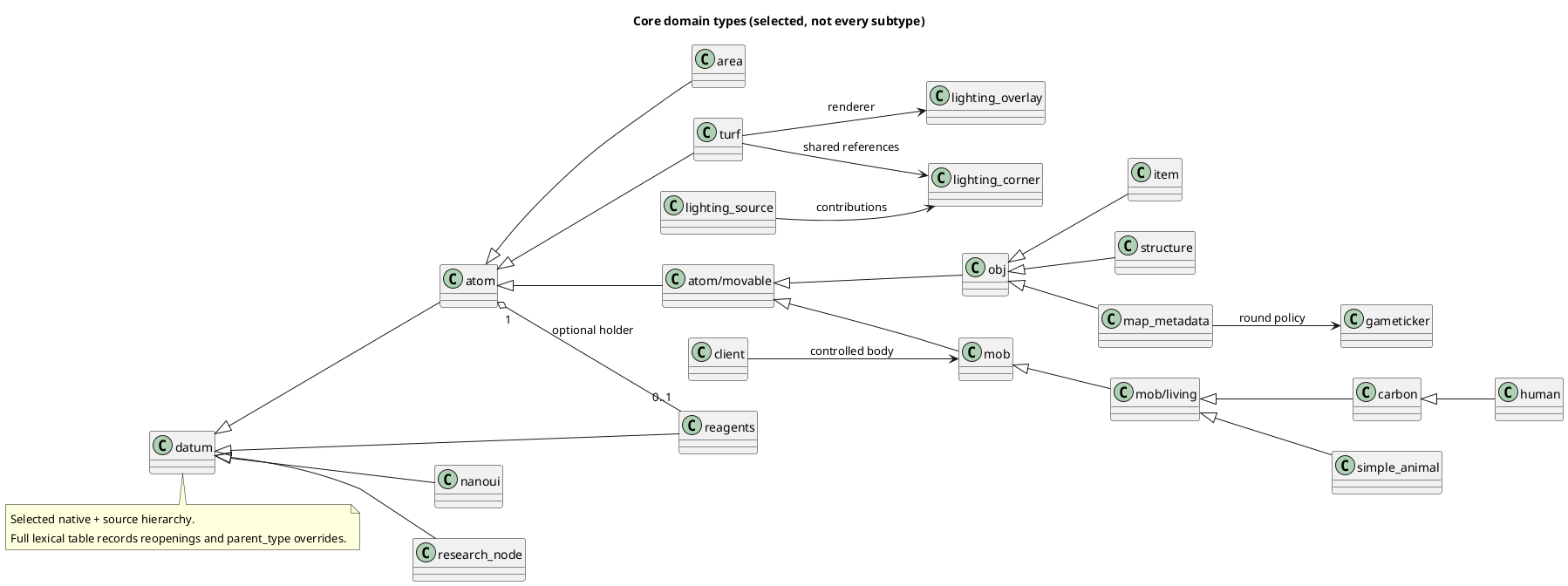

Core domain types

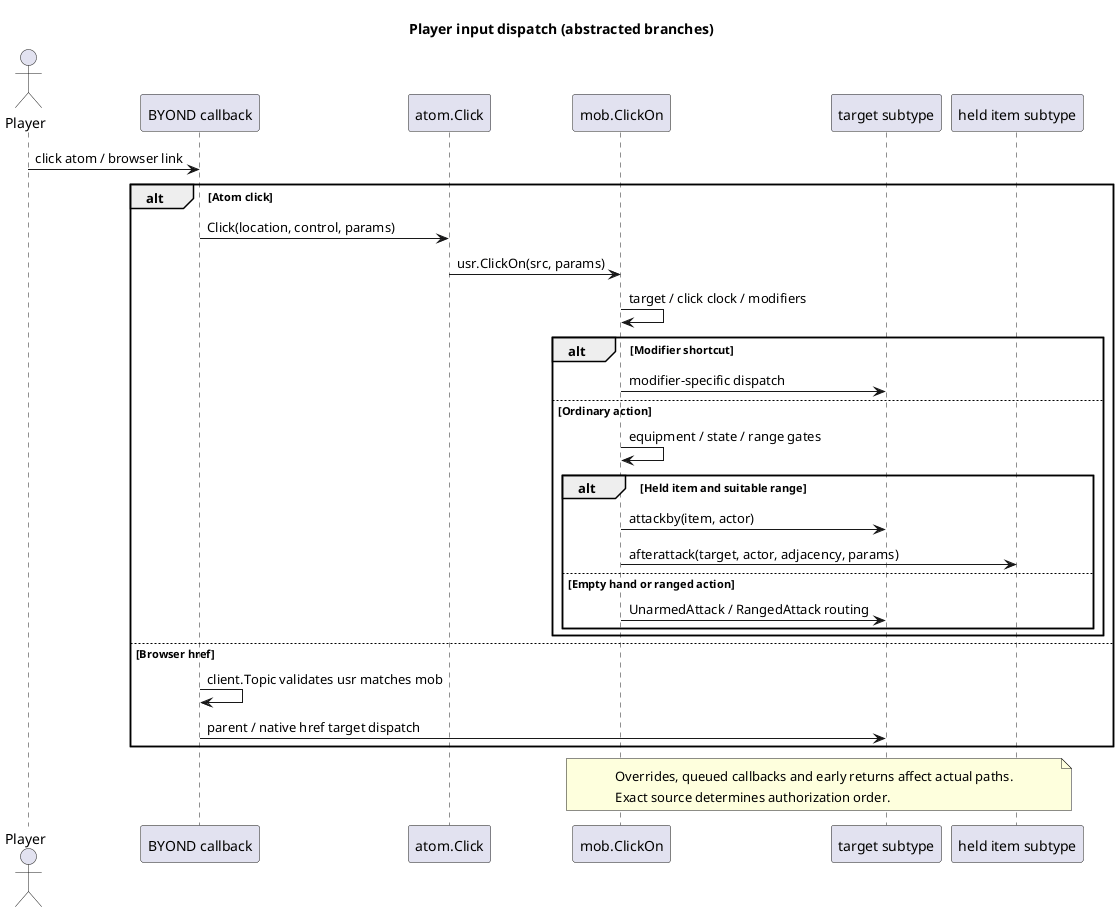

Player input dispatch

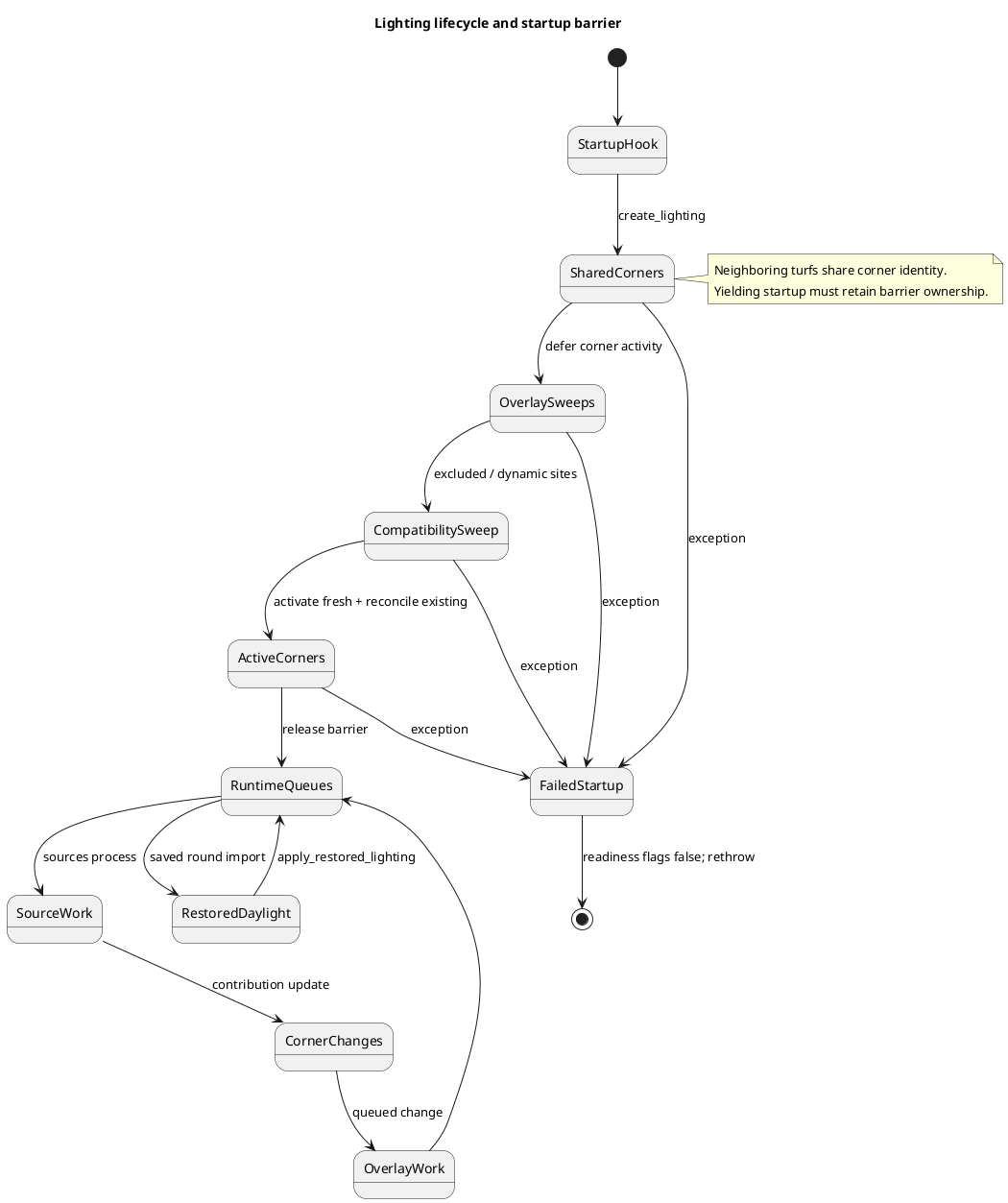

Lighting lifecycle
Lighting call-name candidates (not proven calls)
This larger graph is provided as a separate zoomable SVG to keep this page lightweight.

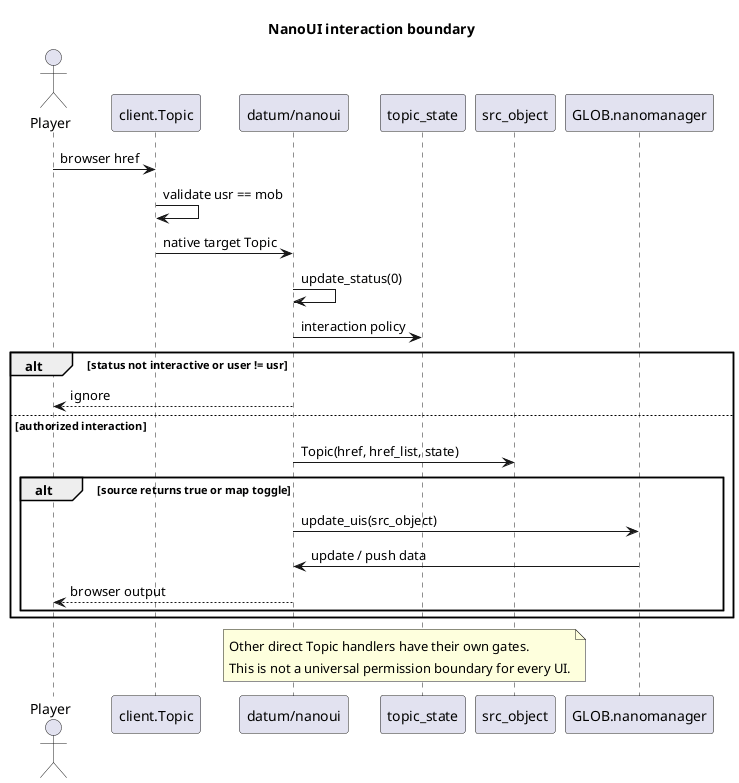

NanoUI interaction boundary
Runtime and gameplay

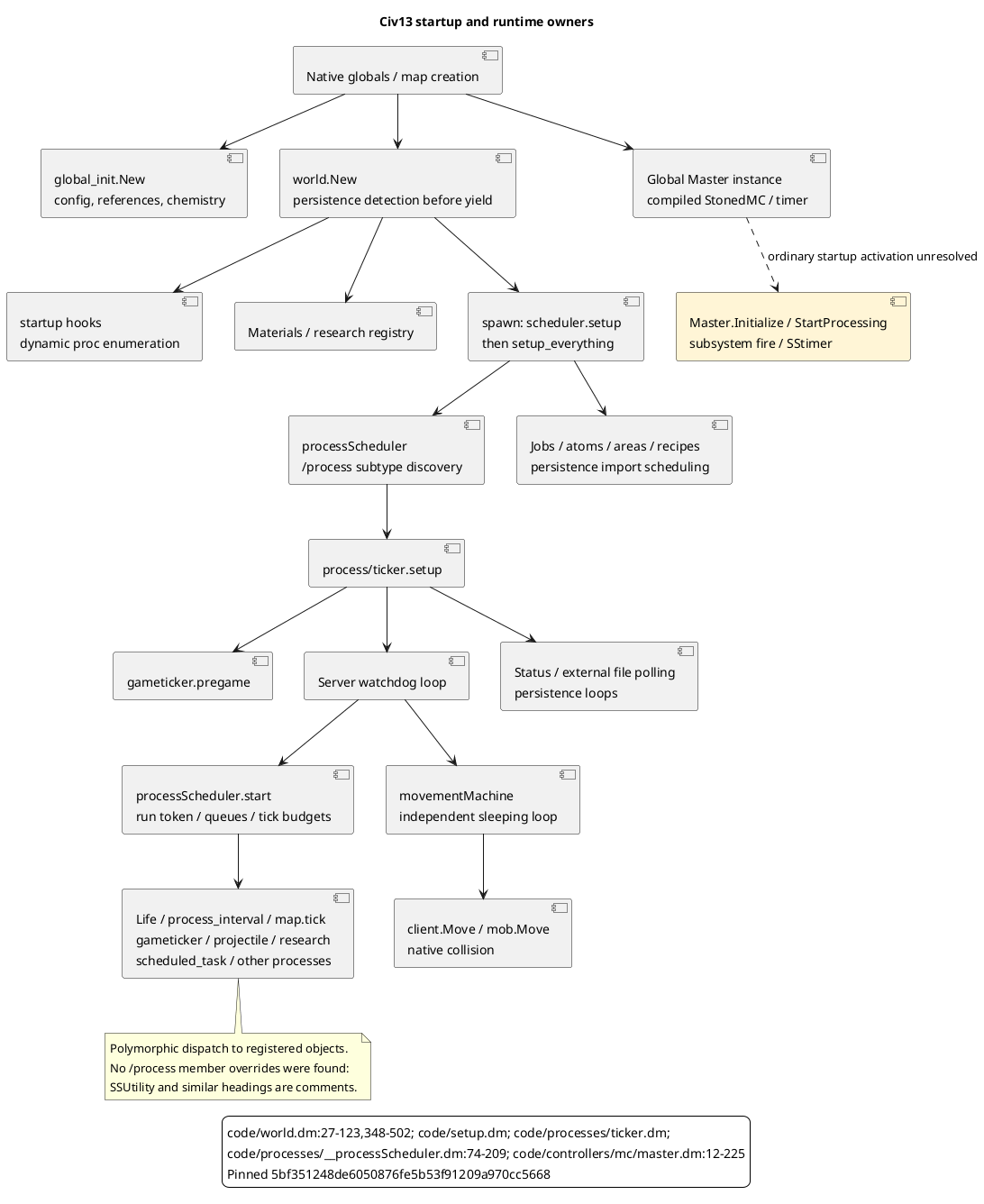

Runtime ownership

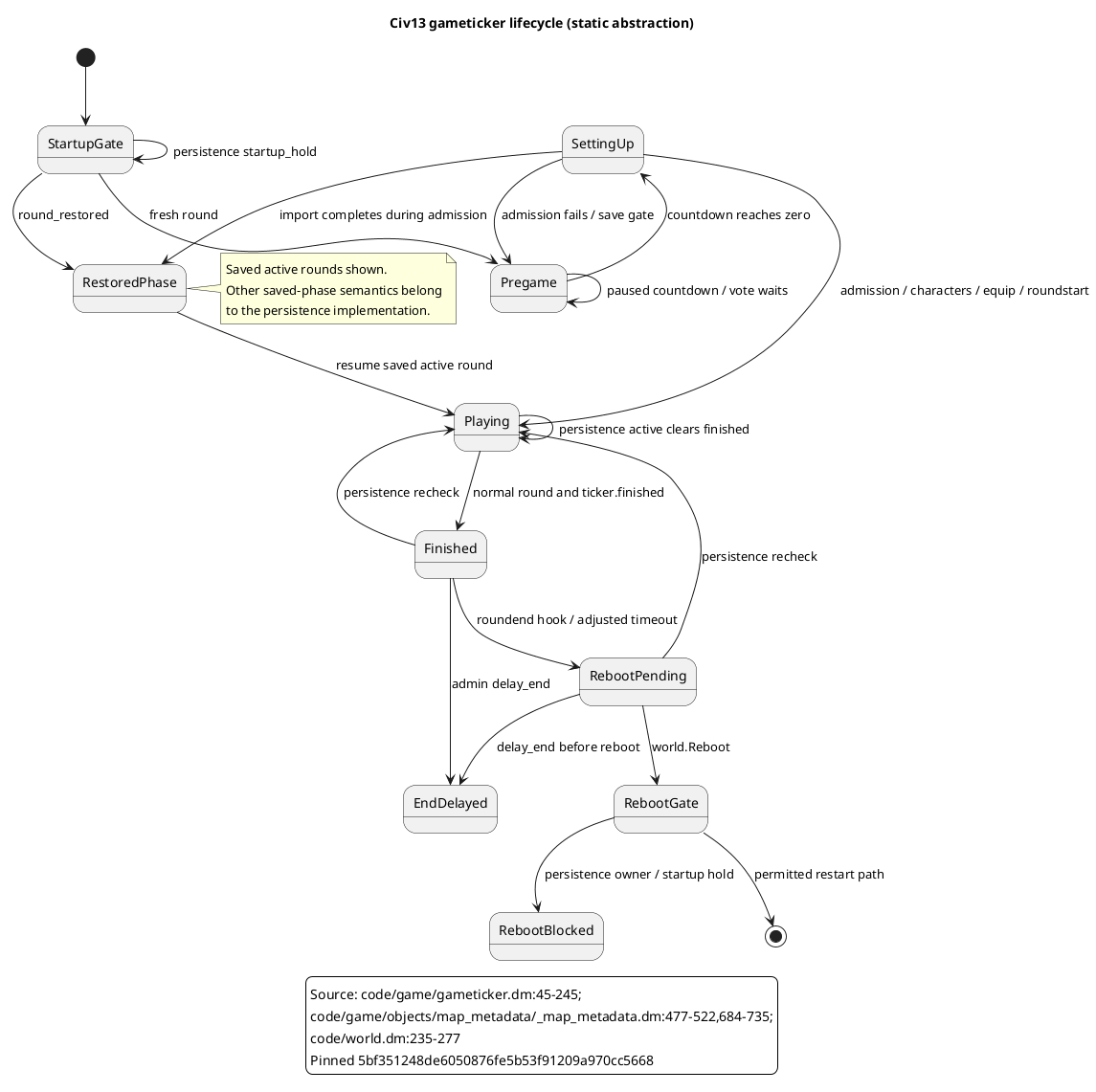

Round lifecycle

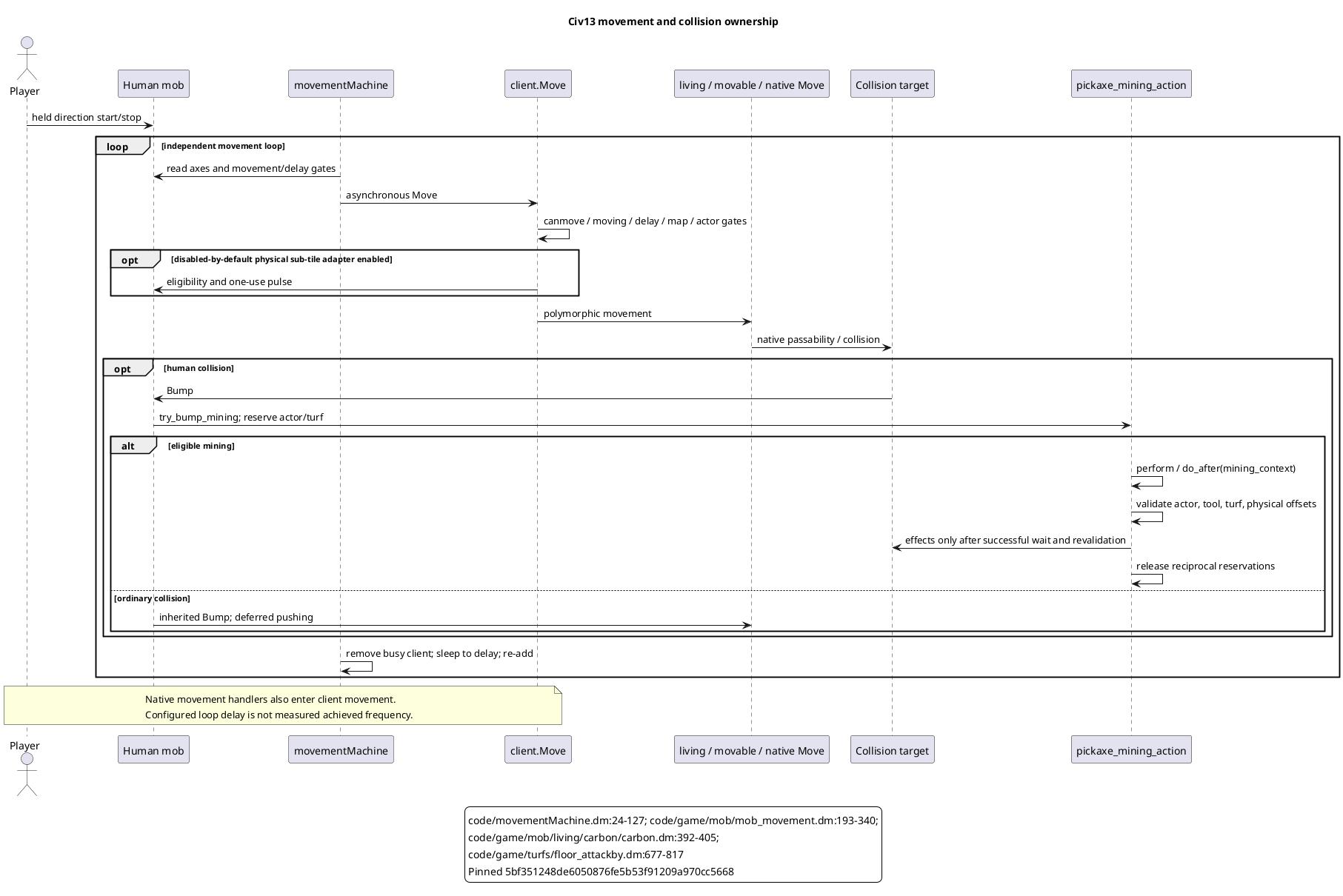

Movement and collision ownership

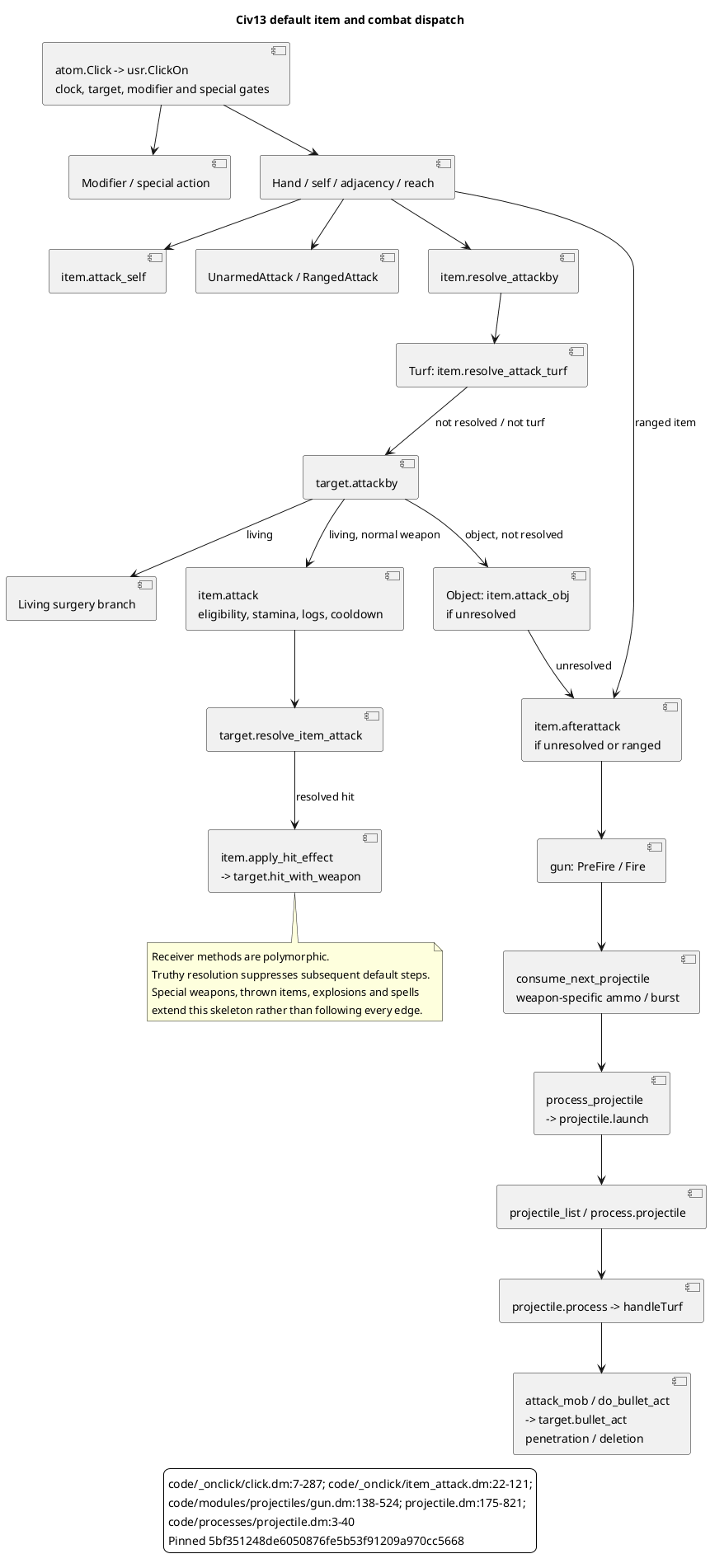

Combat dispatch

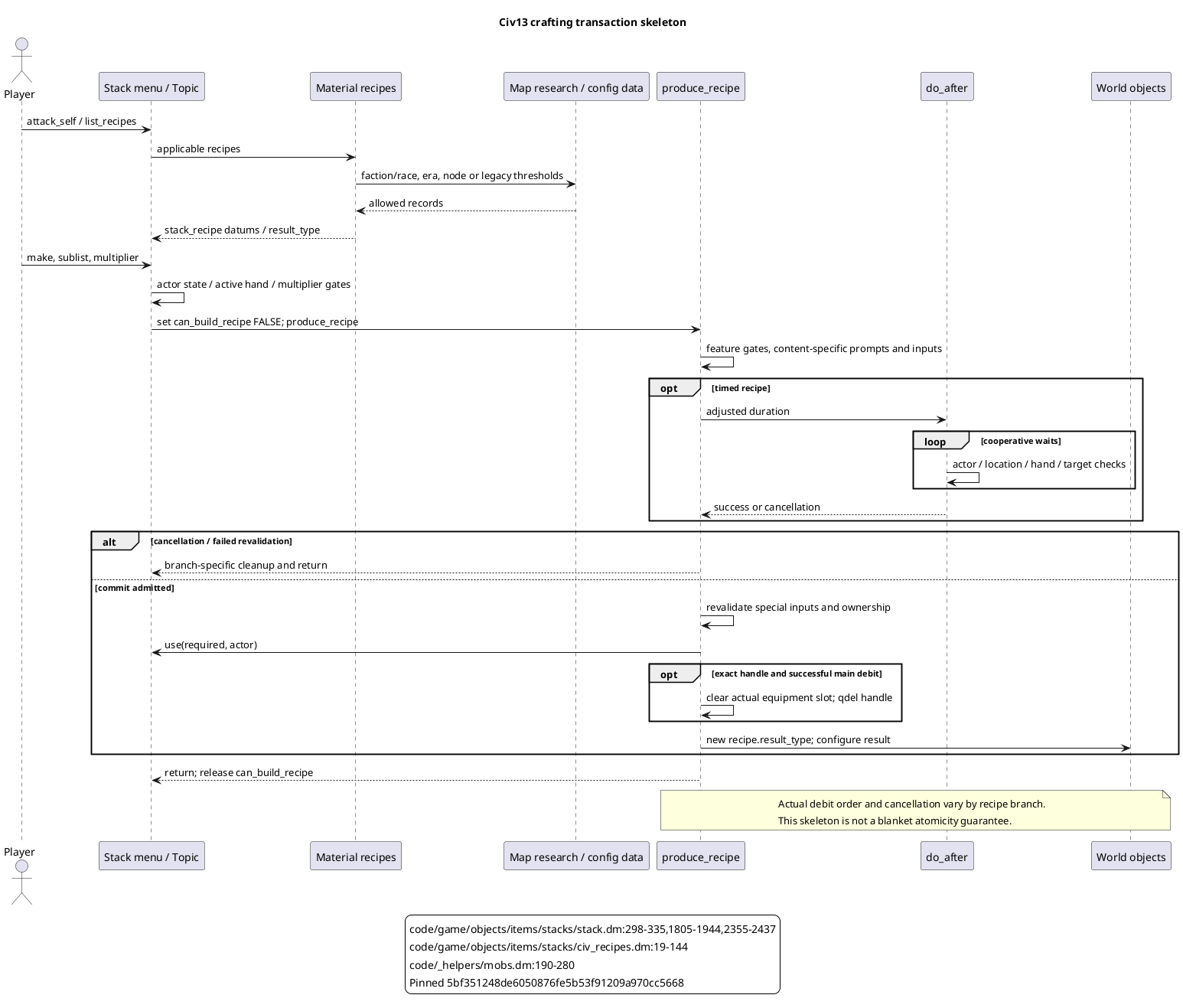

Crafting transaction

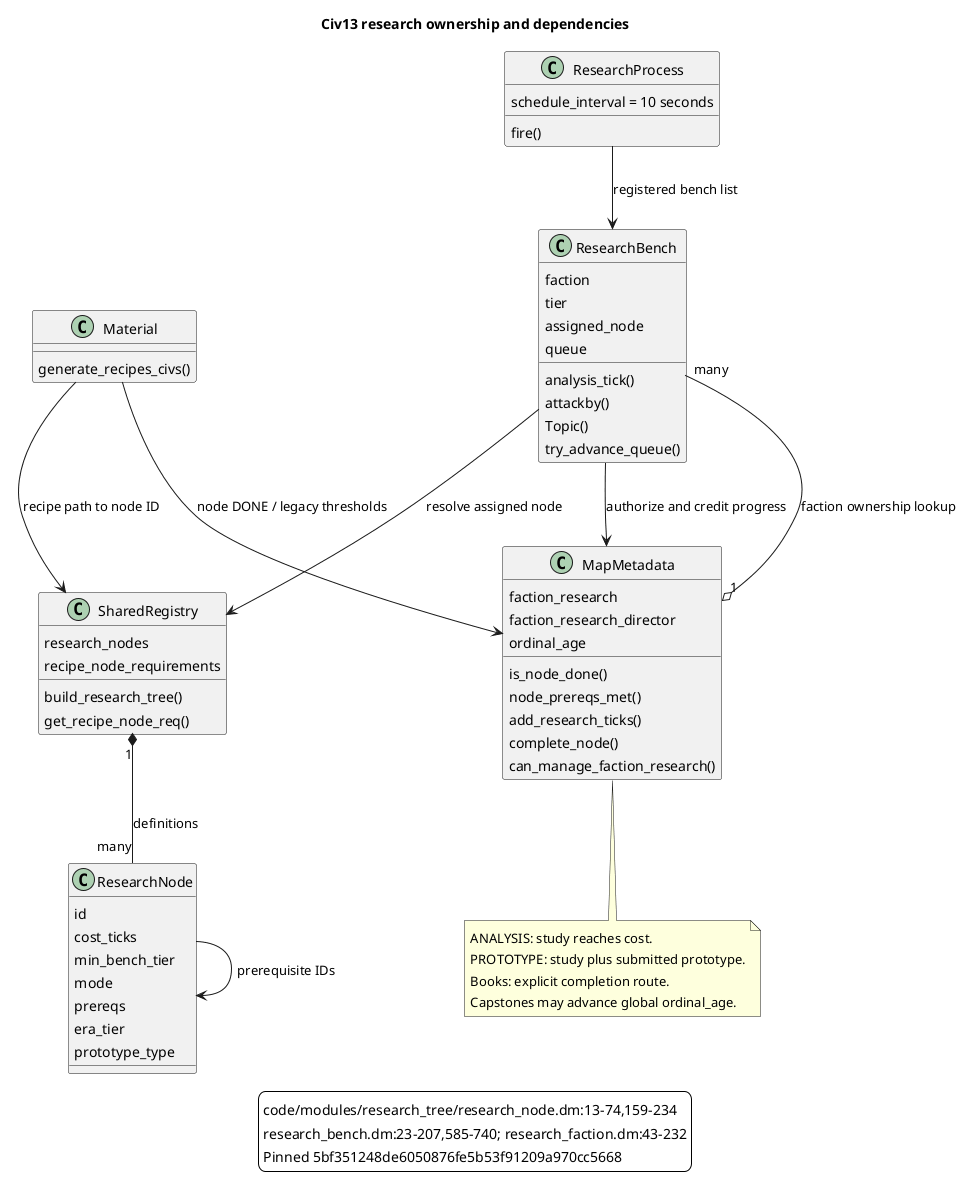

Research model

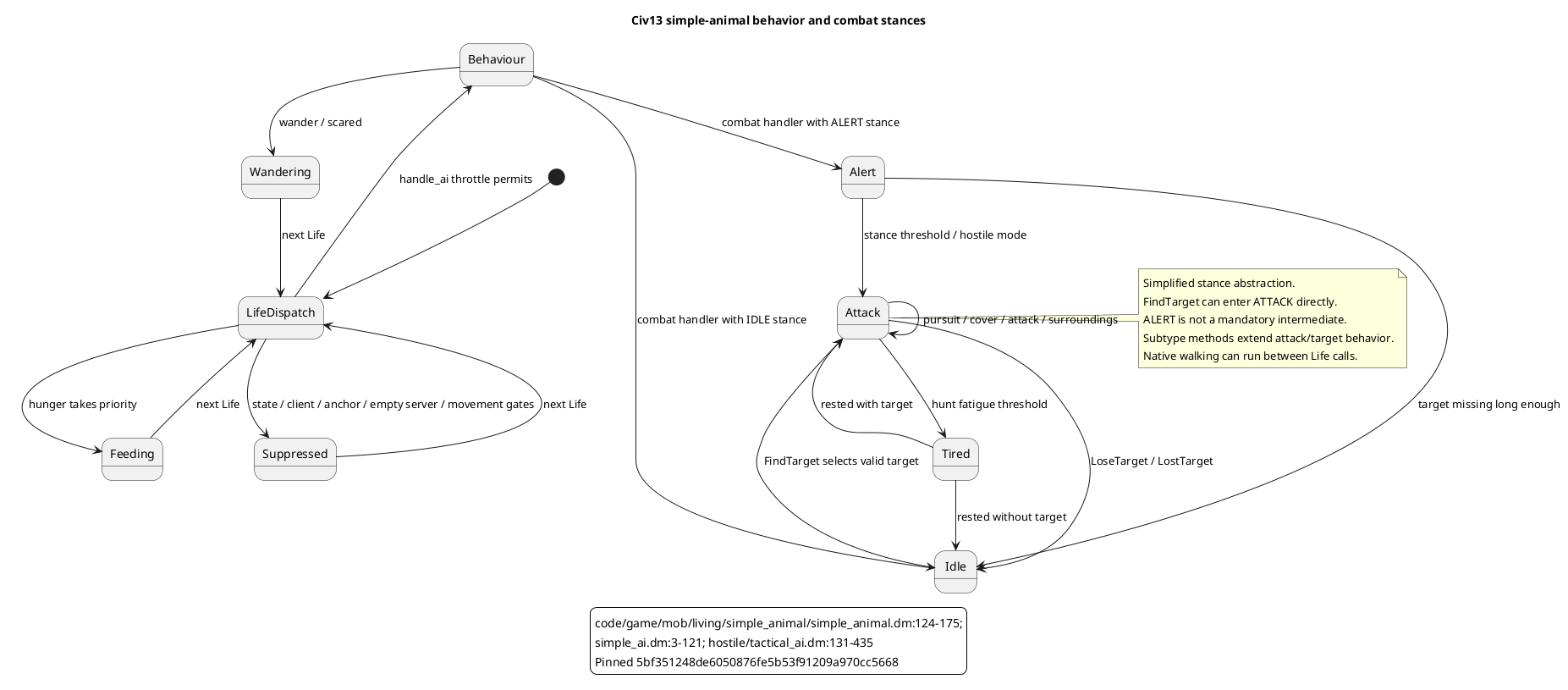

Animal AI states
Research prerequisites (dependency graph)
This larger graph is provided as a separate zoomable SVG to keep this page lightweight.

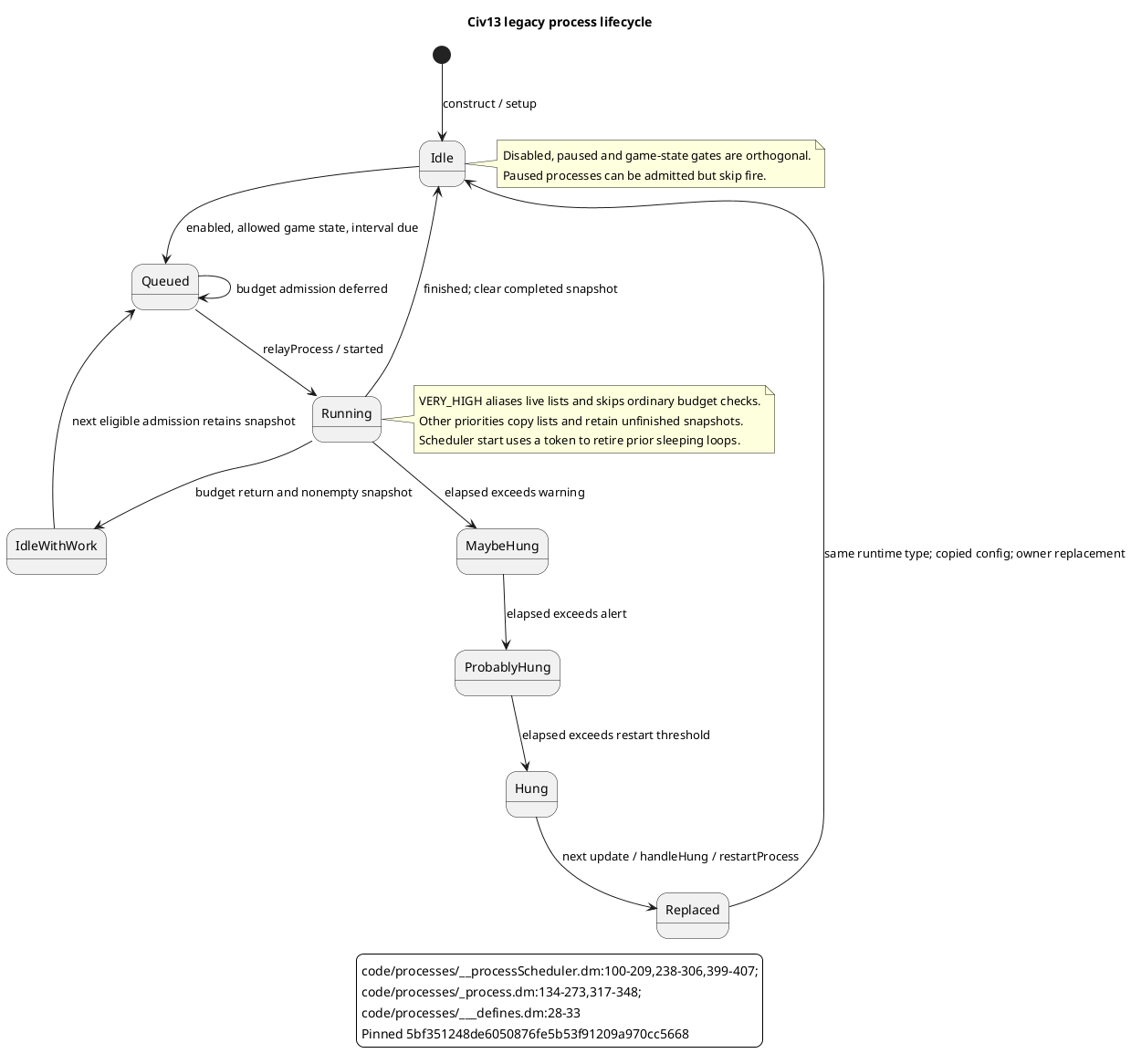

Process lifecycle
Persistence and services

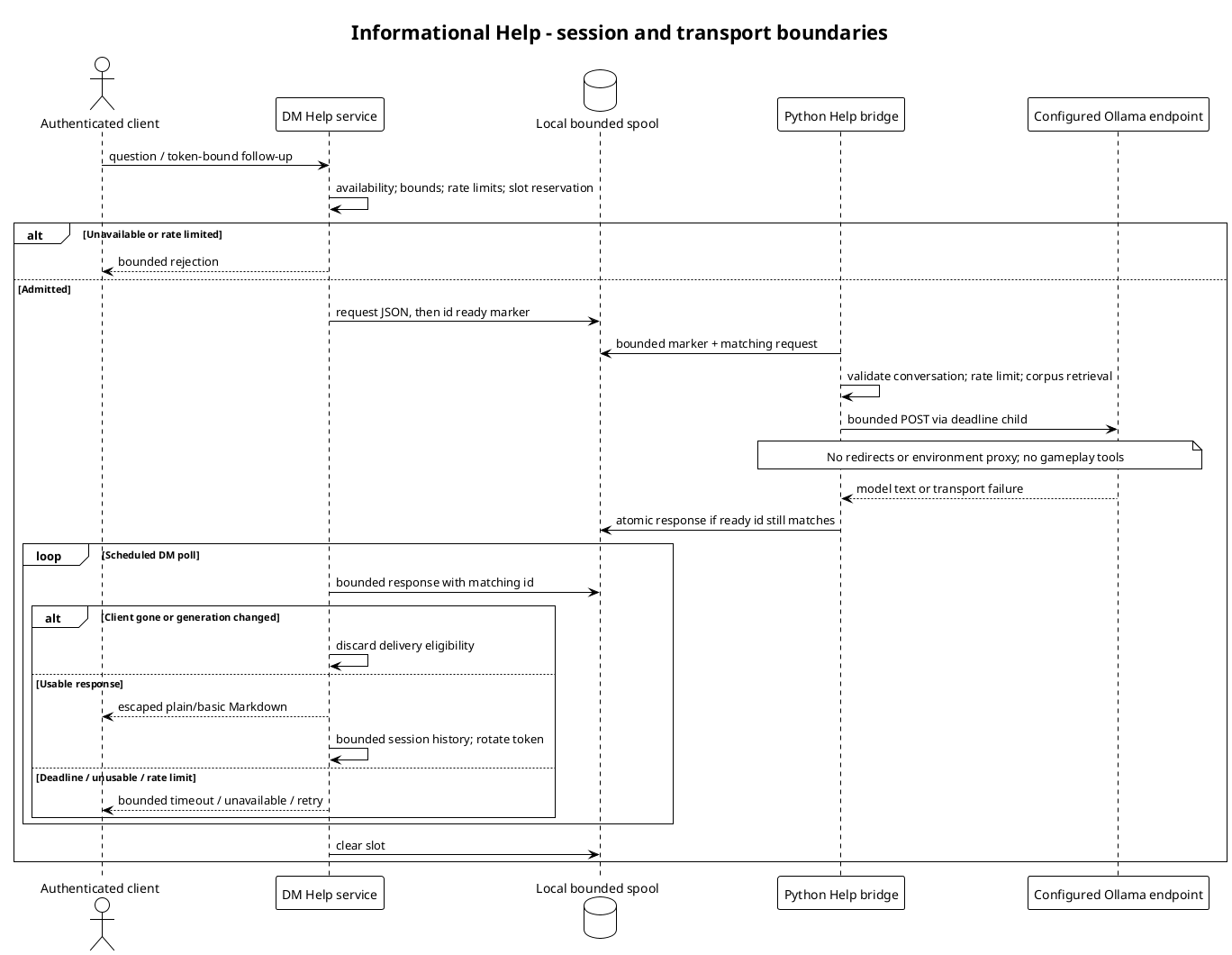

Help service sequence

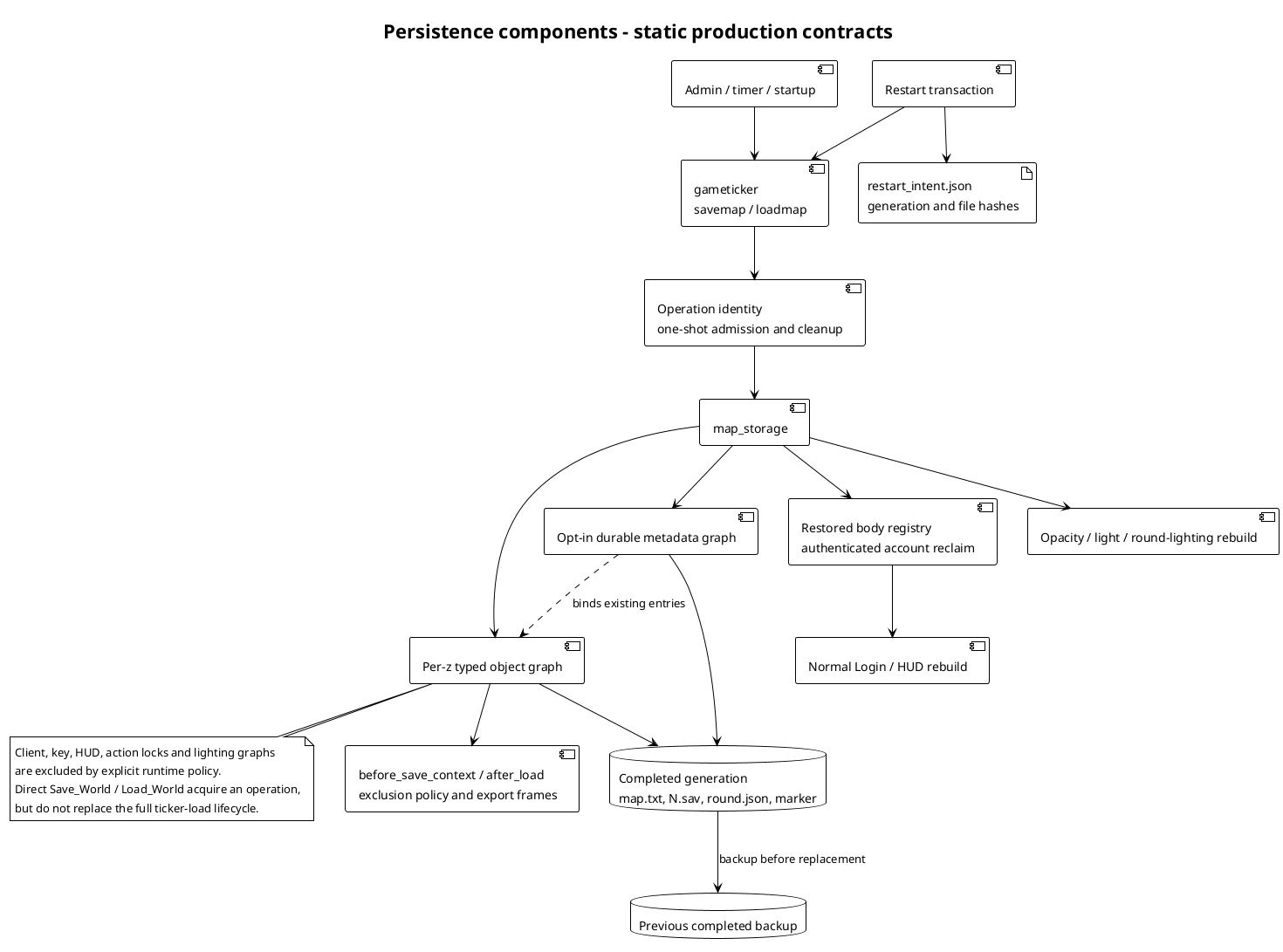

Persistence components

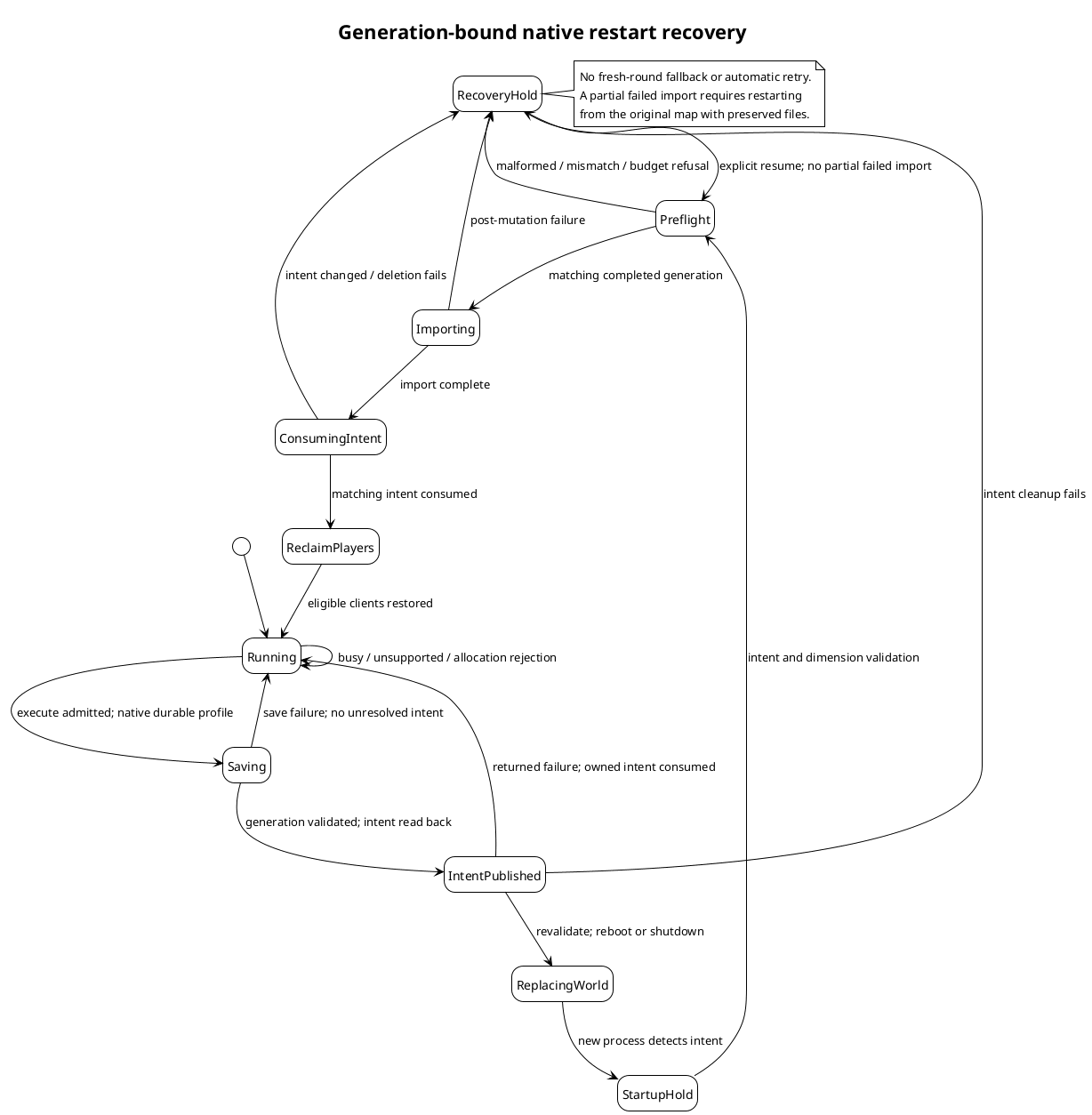

Restart recovery

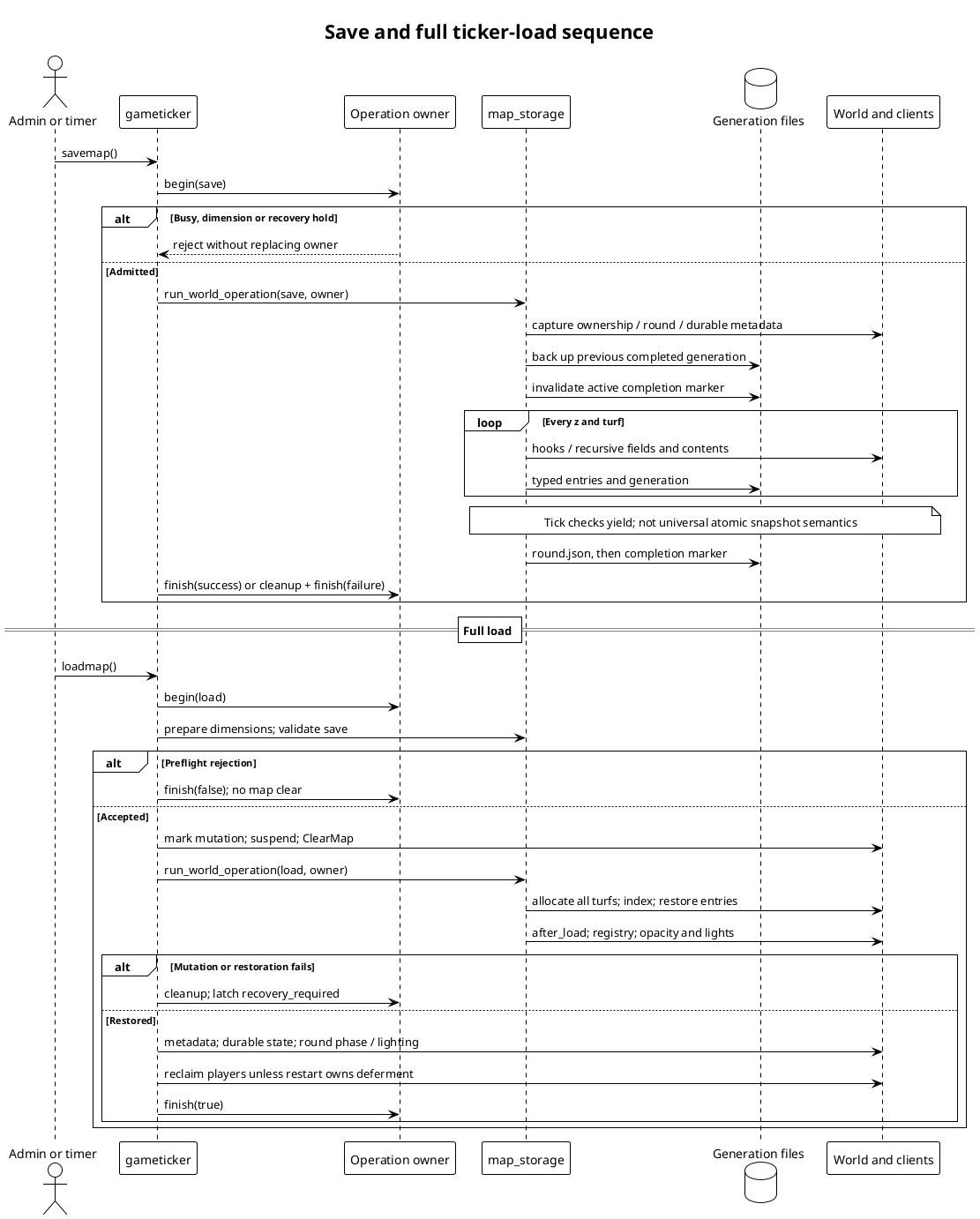

Save and load sequence

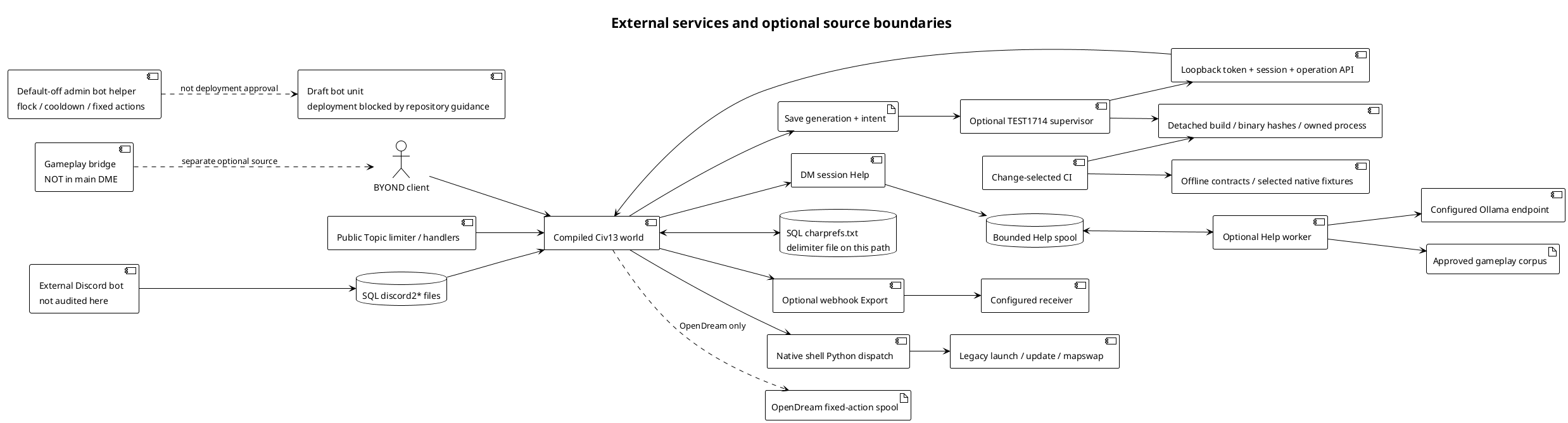

External services
